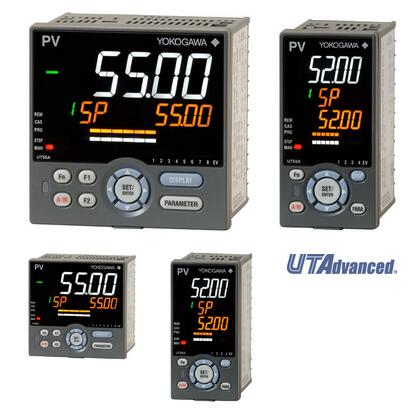

Mid-level Temperature Controller UT55A/UT52A
The UT55A and UT52A temperature controllers employ an easy-to-read, 14-segment large color LCD display, along with navigation keys, thus greatly increasing the monitoring and operating capabilities. A ladder sequence function is included as standard. The short depth of the controller helps save instrument panel space. The UT55A/UT52A also support open networks such as Ethernet communication.
UT55A and UT52A Temperature Controller Features
Up to 4 analog inputs available
3 alarm independent common terminals available as standard
Ladder sequence programs can be built
Simple operation
Up to 18 DOs (combinations available)
Multiple language operation manual (Japanese, English, German, French, Spanish, Chinese, and Korean) available. Please specify the desired language when ordering.
Detailed code model available to customize specifications best suited to you.
Description：
The UT55A and UT52A temperature controllers employ an easy-to-read, 14-segment large color LCD display, along with navigation keys, thus greatly increasing the monitoring and operating capabilities. A ladder sequence function is included as standard. The short depth of the controller helps save instrument panel space. The UT55A/UT52A also support open networks such as Ethernet communication.
UT55A and UT52A Temperature Controller Features
Up to 4 analog inputs available
3 alarm independent common terminals available as standard
Ladder sequence programs can be built
Simple operation
Up to 18 DOs (combinations available)
Multiple language operation manual (Japanese, English, German, French, Spanish, Chinese, and Korean) available. Please specify the desired language when ordering.
Detailed code model available to customize specifications best suited to you.
| ITEM | UT55A | UT52A | |
|---|---|---|---|
| PV input | Input type | 1 Universal input (TC, RTD, mV, V, mA) | |
| Indication accuracy | ±0.1% of F.S. | ||
| Control scan period | 50, 100, 200 msec | ||
| PV/SP data display | 14-segment, 5 digits, Bar graph LCD display | ||
| Control outputs (MV) | Type | Relay, Voltage Pulse, Current | |
| Algorithm | ON/OFF, PID (Continuous, Time-proportional), Heating/Cooling, Position-proportional | ||
| Digital inputs | Number | 3 (Std) 9 (Max) | 3 (Std) 5 (Max) |
| Type | SP No.Change, PID No. Change, A/M Change, etc | ||
| Digital outputs | Number | 3 (Std) 18 (Max) | 3 (Std) 5 (Max) |
| Function | PV High, PV Low, Dev High, etc | ||
| Current trans input (option） | Number | 2 | |
| Retransmission | Number | 1 | |
| Type | PV, SP, OUT, etc | ||
| Remote (aux.) input (option) | Number | 1 or 3 | 1 |
| Type | 1 to 5 V, etc Only 1 input can be changed to universal input when specified the /DR option | ||
| Loop power supply (LPS) (option) | Number | 1 | |
| Voltage | 21.6 to 28.0 VDC | ||
| Communication (option) | Number | 1 or 2 | 1 |
| Type | RS-485, Ethernet, PROFIBUS-DP, CC-Link, DeviceNet | RS-485 | |
| Other specifications | Power supply | 100 to 240 VAC (+10%, -15%) or 24 VAC/DC (+10%, -15%) (option) | |
| Power consumption | Max 18 VA | Max 15 VA | |
| Mass | Max 0.5 kg | ||
