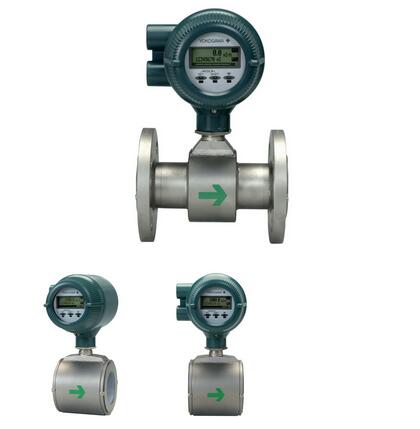

ADMAG AXF Magnetic Flow Meters
The ADMAG AXF is the magnetic flow meter which has adopted the proven Dual Frequency Excitation. Moreover, the Enhanced Dual Frequency Excitation has been newly added to tackle more severe applications.
The AXF has user-friendly functions; such as an electrode adhesion level diagnosis function, infra-red switches which can be used for setting parameters without opening the case cover, ability to change the direction of electrical connection on the site.
Based on FOUNDATION™ fieldbus specifications, AXF Fieldbus models offer more flexible instrumentation through a higher level communication capability and propose the cost reduction by multi-drop wirings with less cables. FOUNDATION™ fieldbus is a registered trademark of Fieldbus FOUNDATION.
Description：
The ADMAG AXF is the magnetic flow meter which has adopted the proven Dual Frequency Excitation. Moreover, the Enhanced Dual Frequency Excitation has been newly added to tackle more severe applications.
The AXF has user-friendly functions; such as an electrode adhesion level diagnosis function, infra-red switches which can be used for setting parameters without opening the case cover, ability to change the direction of electrical connection on the site.
Based on FOUNDATION™ fieldbus specifications, AXF Fieldbus models offer more flexible instrumentation through a higher level communication capability and propose the cost reduction by multi-drop wirings with less cables. FOUNDATION™ fieldbus is a registered trademark of Fieldbus FOUNDATION.
Note: The "Dual Frequency Excitation Method" is a Yokogawa innovation.
User-oriented Functionality
Fluid Adhesion Level Diagnosis
The amount of insulating material on the electrode is constantly monitored to determine when maintenance should be performed. An optional replaceable electrode is easy to remove and clean.
Flexible Electrical Connection Direction
The converter or the terminal box can be rotated in either direction to match the position of the electrical connections at the installation site.
Clear and Versatile Indications
The large, backlit full dot matrix LCD can display a variety of messages up to three lines in length. When an alarm condition occurs, a full description of the appropriate countermeasure is displayed.
Easy Setup
The most frequently used parameters are arranged in a group at the top of the display. Infrared switches enable the setting of parameters without opening the cover.
Operation Immediately after Installation
The AXF is shipped with the main parameters completely set and can go into operation as soon as installation and wiring are completed.
Expansion of Product Lineup
Improved Accuracy Specification
The standard accuracy is 0.35% of reading. Also available as an option is high accuracy calibration rated at 0.2% of reading.
Extra Small Size Flange Type
Flange types are now available in sizes as small as 2.5 mm.
Variety of Sanitary Connections
A wider variety of sanitary connections are now available, including Tri-Clamp, ISO, DIN and SMS.
Enhanced Performance
Enhanced Dual Frequency Excitation
The enhanced dual frequency excitation method is available as an option. This provides highly stable measurements involving high concentration slurries or low conductivity fluids.
Lower Minimum Conductivity
The newly designed AXF converter permits the measurement of fluids with conductivity as low as 1μS/cm depending on the nominal pipe size and fluid condition.
High-Speed Pulse Output
The maximum rate for high speed applications such as short-duration batch processes is now 10,000 pps (pulses per second).
| AXF Remote Flowtube | AXF Integral Flow meter | AXFA14 Converter | AXFA11 Converter | |
|---|---|---|---|---|
| Size | 2.5 to 400 mm (0.1 to 16 inch) [depends on specifications] | 2.5 to 400 mm (0.1 to 16 inch) [depends on specifications] | Combined with Remote type flowtube 2.5 to 400mm (0.1 to 16 inch) | Combined with Remote type flowtube (Note) 2.5 to 400m (0.1 to 16 inch) |
| Type of Use | General-purpose use, Ex-proof type, Sanitary type, Submersible type | General-purpose use, Ex-proof type, Sanitary type | General-purpose use, Ex-proof type | General-purpose use |
| Fluid Temp. | -40 to 160 deg.C (-40 to 320 deg.F) [depends on specifications] | -40 to 130 deg.C (-40 to 266 deg.F) [depends on specifications] | - | - |
| Ambient Temp. | -40 to 60 deg.C (-40 to 140 deg.F) [depends on model type] | |||
| Accuracy | 0.35% of rate (Optional ; 0.2% of rate) | |||
| Fluid Conductivity | 1 micro-S/cm or larger (depends on nominal pipe size and fluid condition) | |||
| Lining | Fluorocarbon PFA/Ceramics/Polyurethance Rubber/ EPDM Rubber/ Natural Soft Rubber [depends on model type] | - | - | |
| Process Connection | Wafer, Flange, Sanitary connections (Clamp[Tri-clamp, DIN, ISO], Union thread[DIN, ISO SMS], Butt-weld), etc. | - | - | |
| Maximum Cable Length | - | - | 100m (330 ft) | 200m (660 ft) |
| Indicator | - | Multi line backlit LCD (Full dot-matrix) | ||
| Diagnosis | Adhesion diagnosis, Empty pipe, Coil open, etc. | |||
| Alarm message | Alarm message with corrective measures is indicated (English, German, French, Italian, Spanish, Japanese) | |||
| Excitation method | Dual Frequency Excitation: AXF sizes 2.5 to 400mm, Pulsed DC Excitation: AXW sizes 500 to 1800 mm (Note), Enhanced Dual Frequency Excitation (optional): AXF sizes 25 to 200 mm | |||
| Ex-proof type | ATEX, FM, CSA, IECEx, TIIS | - | ||
| Options | Replaceable electrode, Rotatable terminal box(converter), Mirror finished lining surface(for PFA/Ceramics), Special gaskets, etc. | |||
PROFIBUS is an open, digital communication system which covers factory and process automation. The GSD and EDD files can be downloaded here.
| Product | GSD file | EDD file |
|---|---|---|
| ADMAG AXF Magnetic Flowmeter | AXF_PA_GSD_00.zip(11KB) | AXF_PA_00.zip(420KB) |
Note: There are two types of GSD file in the AXF_PA_GSD_00.zip folder.
| Device Specific GSD | YEC4590.gsd |
|---|---|
| Profile GSD file | PA139740.gsd |
