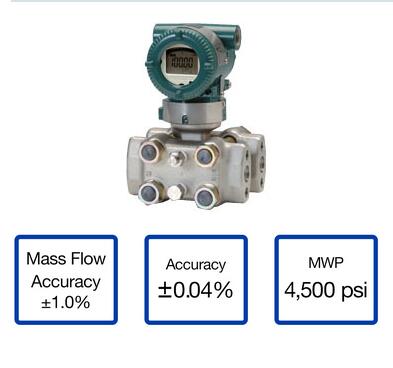

EJX930A Multivariable Transmitter

The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

The EJX930A multivariable transmitter is a remarkable innovation in multi-sensing technology. It makes optimal use of the unique characteristics of the DPharp sensor to give you greater insight into your process.

EJX930A features include:

Mass Flow Version:

• ±1.0% mass flow rate accuracy

• Fully compensated mass flow

• Mass Flow Totalizer with ±1.0% accuracy

• Pulse / Contact output

• 4,500 psi MWP

• TUV SIL 2/3 Certification

Multi-Sensing Version:

• ±0.04% Differential Pressure Accuracy

• ±0.1% Static Pressure Accuracy

• ±0.9°F External Temerature Accuracy

• 4,500 psi MWP

• TUV SIL 2/3 Certification

At it's heart, Yokogawa Differential Pressure Transmitter with DPharp sensor offers the performance and device intelligence needed to get greater insight into your process.

Rugged Construction

FieldMate FlowNavigator™ is a PC-based software that is exclusively designed for use with the EJX910A / EJA930A. It uses FDT/DTM standards to enable users to configure mass flow and achieve accurate measurements with real-time full density compensation.
