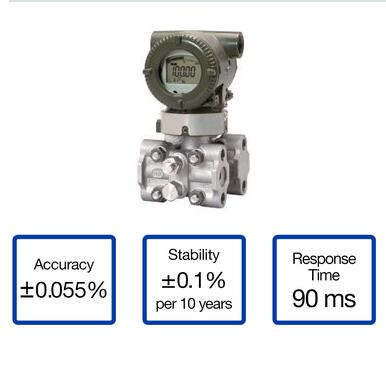

EJA430E Traditional-mount Gauge Pressure Transmitter
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.
The EJA430E is our traditional-mount gauge pressure transmitter in the series.
EJA430E features include:
± 0.055% Accuracy (0.04% Accuracy optional)
± 0.1% Stability per 10 years
90 ms Response Time
Exida and TUV SIL 2/3 Certified
Local Parameter Setting (LPS)
Available with HART 5/7, 1 to 5V HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.
Description：
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.
The EJA430E is our traditional-mount gauge pressure transmitter in the series.
EJA430E features include:
± 0.055% Accuracy (0.04% Accuracy optional)
± 0.1% Stability per 10 years
90 ms Response Time
Exida and TUV SIL 2/3 Certified
Local Parameter Setting (LPS)
Available with HART 5/7, 1 to 5V HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.
At it's heart, Yokogawa's Differential Pressure Transmitter with DPharp digital sensor offers the performance and device intelligence needed to get greater insight into your process.
Plants run better with Yokogawa pressure transmitters.
Digital Performance
Digital Performance
Poor Performance = Lost Money
Installed performance 2x better using all digital DPharp pressure sensor.
Yokogawa’s digital sensor provides superior performance and stability compared to analog sensors.
Dynamic Compensation
Compensates for process changes to improve accuracy.
More Information
Local Indicator
Easy to read indicator provides all the information you need.
Self Diagnostics
Standard Diagnostics
Good Diagnostics = Less Surprises
Reduce unscheduled maintenance by 60%
Over 40 diagnostics to ensure everything is OK. Active Sensor Technology monitors the DPharp sensor while the Patented Back-check Technology is reverse checking all calculations in real-time.
Yokogawa's DPharp active sensor, patented back check diagnostics, and rugged construction allow users to run their plants safer and with less downtime.
Yokogawa pressure transmitters help plants run longer.
Rugged Construction
Rugged Construction
Ruggedness = Reliability
Reduce failures in the field by 200%.
Yokogawa transmitters are designed to out live your planet.
Proven Technology
Proven in Use
Less Downtime = Making Product
Over 6 million DPharp transmitters are installed worldwide.
Reliability Guaranteed
Reliability verified independently by third party industry experts.
Inherently Safe Design
Inherently Safe
Inherently Safe = Reliability
Save up to 10% on CAPEX spending.
All Yokogawa pressure transmitters are certified to meet IEC61508 for single use in SIL 2 applications or dual use in SIL 3 applications as a standard. No special option needed! To Yokogawa, safety should never be an option.
Active Sensor Technology
Unlike other sensor technologies, the active DPharp sensor constantly produces a signal even if there is no change in the process. This signal is continually monitored by the CPU.
Patented Self-check System
All calculations are checked by reverse calculation in real-time ensuring the highest reliability.
Efficient and effective maintenance through extended calibration intervals and simple trouble shooting.
Routine maintenance is easier with Yokogawa pressure transmitters.
Quicker Maintenance
Extended Calibration Intervals
Reduce maintenance cost by 33%.
Improved long-term stability extends calibration intervals. Spend your time where it is needed.
Quicker = Less Downtime
Multiple Communication Options
Save time, Save money
FieldMate PC based communication platform allows management of your entire instrument inventory.
FieldMate HHC allows you to take that information into the field.
LPS can update 9 parameters in the field without the use of an HHC.
Simple Troubleshooting
Save time, Save money
Local intuitive display with simple error messaging.
NE107 compliant alarms in FieldMate make troubleshooting easy.
Less Inventory
Universal Mounting
Reduce stock by 50%.
Consolidate inventory of different flange configurations. Yokogawa transmitters are available with flanges using flexible vent and drain locations to met any installation need.
High Inventory = Stagnant Money
Safety as Standard
Reduce stock.
No need to stock separate inventory for safety and non-safety applications. With safety as a standard, Yokogawa transmitters can be used for either application.
For Yokogawa, safety is never an option.
No Learning Curve
Standard Protocols
No training required.
Yokogawa transmitters support all industry standard field device protocols. Interoperability and interchangeability can be ensured. Use the same tools and work procedures as before.
No Learning Curve = Smooth Change Over
Standard Industry Connections
Process connections designed to meet IEC61518 ensure you will not meet proprietary manifolds or accessories that limit your design choices.
EJA430E Overview
| Measurement Types | |
|---|---|
| Primary Variable | Gauge Pressure |
| Reference Accuracy | |
| Primary Variable | ±0.055% of Span ±0.04% of Span (with /HAC option) |
| Stability (All Normal Operating Conditions) | |
| Primary Variable | ±0.1% of URL per 7 years |
| Response Time | |
| Primary Variable | 90ms |
| Rangeability | |
| Primary Variable | 100:1 |
| Burst Pressure (Absolute) | |
| EJA510E | Wetted Parts code S: 10,000 psi All other Wetted Parts: 6,800 psi |
| Specification Conformance | |
| EJA-E Series | ±3σ |
